Kubernetes基础 ( 7 ) - Ingress

一、概述

在前一章中，我们可以通过Service中的NodePort、LoadBalancer的方式来暴露服务的端口，但这也意味着我们需要管理NodePort的端口映射关系。

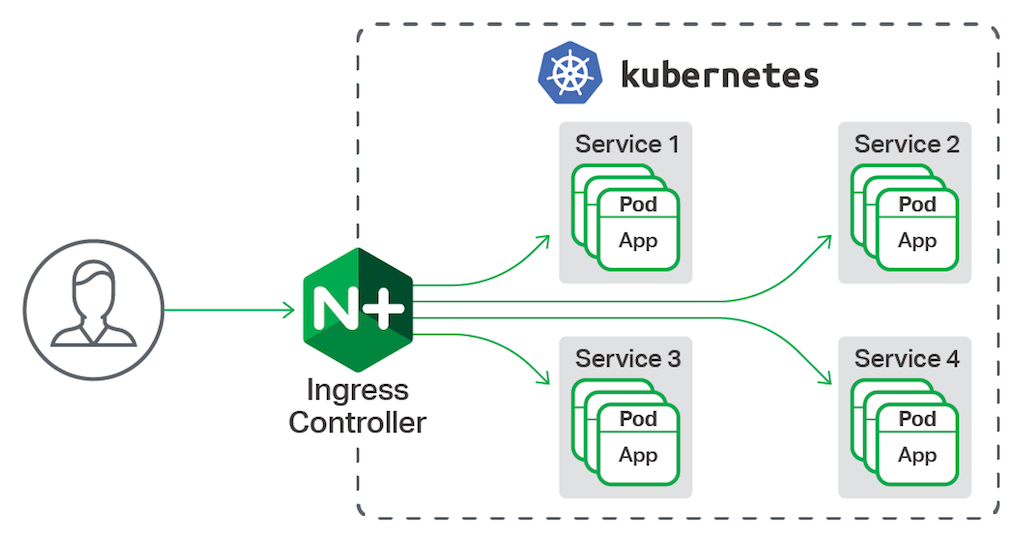

Ingress可以根据hostname和path将流量转发到不同的Service上。使用Ingress后的流程图如下，相当于在Service上又重新封装了一层，可以根据访问规则，将流量转到不同的Service上。

Ingress与Ingress-controller

Ingress对象：k8s中的资源对象，可以通过yaml配置，作用是定义到service的转发规则。

Ingress-controller：实现反向代理及负载均衡的控制器，解析Ingress规则，根据规则进行转发。

常见的ingress-controller有：ingress-nginx、traefik，这里使用ingres-nginx

二、ingress-nginx

2.1 安装

通过官方仓库说明文档 [1]，我的环境是Docker for Mac，应该是执行下面语句。

$ kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.35.0/deploy/static/provider/cloud/deploy.yaml

但需要注意的是文件中这个镜像要翻墙，否则拉取镜像会失败。

image: k8s.gcr.io/ingress-nginx/controller:v0.35.0@sha256:fc4979d8b8443a831c9789b5155cded454cb7de737a8b727bc2ba0106d2eae8b

我这里的处理方法是借助阿里云的仓库，通过构建Github上的Dockerfile。然后直接用阿里云的仓库替换掉后再apply。

2.2 示例

apiVersion: apps/v1
kind: Deployment
metadata:
  name: k8s-go-demo-deploy
  labels:
    project: k8s-go-demo-deploy
spec:
  replicas: 2
  selector:
    matchLabels:
      app: k8s-go-demo
  template:
    metadata:
      labels:
        app: k8s-go-demo
    spec:
      containers:
      - name: k8s-go-demo
        image: pengbotao/k8s-go-demo:v1
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 38001

---

apiVersion: v1
kind: Service
metadata:
  name: k8s-go-demo-svc
  labels:
    project: k8s-go-demo-svc
spec:
  selector:
    app: k8s-go-demo
  ports:
  - port: 38000
    targetPort: 38001
    protocol: TCP

---

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: k8s-go-demo-ingress
spec:
  rules:
  - host: demo.k8s.com
    http:
      paths:
      - path: /
        backend:
          serviceName: k8s-go-demo-svc
          servicePort: 38000

前面的Deployment和Service用的比较多了，主要看ingress，这里根据serviceName和servicePort进行关联。应用之后可以看到：

$ kubectl get ingress
NAME                  HOSTS          ADDRESS     PORTS   AGE
k8s-go-demo-ingress   demo.k8s.com   localhost   80      47m

配置Hosts后本地浏览器访问http://demo.k8s.com/可以看到如下效果。

{
    "ClientIP": "192.168.65.3",
    "Host": "k8s-go-demo-deploy-f5fb59494-tgcq4",
    "ServerIP": "10.1.2.115",
    "Time": "2020-09-21 10:00:41",
    "Version": "v1"
}

默认使用的80端口，如果本地有其他程序占用80端口可能无法访问。

可以进ingress-nginx容器看到，相当于通过Nginx把请求转给后端Service。

$ kubectl get pod -n ingress-nginx
NAME                                       READY   STATUS    RESTARTS   AGE
ingress-nginx-controller-5449bc97c-k5g87   1/1     Running   0          8m16s
ingress-nginx-controller-5449bc97c-lgj5c   1/1     Running   0          4h2m
ingress-nginx-controller-5449bc97c-wjxm7   1/1     Running   0          8m16s

$ kubectl exec -it ingress-nginx-controller-5449bc97c-k5g87 -n ingress-nginx /bin/bash

$ cat nginx.conf

server {
    server_name demo.k8s.com ;

    listen 80  ;
    listen 443  ssl http2 ;

    set $proxy_upstream_name "-";

    ssl_certificate_by_lua_block {
            certificate.call()
    }

    location / {

        set $namespace      "default";
        set $ingress_name   "k8s-go-demo-ingress";
        set $service_name   "k8s-go-demo-svc";
        set $service_port   "38000";
        set $location_path  "/";

2.3 配置SSL

也可以配置HTTPS访问，首先创建secret保存证书：

$ kubectl create secret tls demo-k8s-com --cert=demo.k8s.com.pem --key=demo.k8s.com.key

然后配置ingress使用配置的证书，在注解中设置了ssl-redirect为true会自动跳转到https：

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: demo
  namespace: default
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: 'true'
spec:
  tls:
  - hosts:
    - demo.k8s.com
    secretName: demo-k8s-com
  rules:
  - host: demo.k8s.com
    http:
      paths:
      - path: /
        backend:
          serviceName: demo
          servicePort: 80

2.4 会话保持

默认情况下请求会随机转给后端的pod，可以在注解中增加以下配置达到保持会话的目的。

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: demo
  namespace: default
  annotations:
    nginx.ingress.kubernetes.io/affinity: "cookie"
    nginx.ingress.kubernetes.io/affinity-mode: "persistent"
    nginx.ingress.kubernetes.io/session-cookie-name: "route"
spec:
  rules:
  - host: demo.k8s.com
    http:
      paths:
      - path: /
        backend:
          serviceName: demo
          servicePort: 80

mode有balanced和persistent，一个是扩容缩时自动均衡，一个是永久固定；另外会在客户端增加一个Cookie，默认名称是INGRESSCOOKIE，上面指定为route

2.5 多站点配置

也支持同时配置多个站点

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: demo
  namespace: default
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: 'true'
spec:
  tls:
  - hosts:
    - demo.k8s.com
    - test.k8s.com
    - alpha.k8s.com
    secretName: demo-k8s-com
  rules:
  - host: demo.k8s.com
    http:
      paths:
      - path: /
        backend:
          serviceName: demo
          servicePort: 80
  - host: test.k8s.com
    http:
      paths:
      - path: /
        backend:
          serviceName: test
          servicePort: 80
  - host: alpha.k8s.com
    http:
      paths:
      - path: /
        backend:
          serviceName: alpha
          servicePort: 80

三、小结

到这里，访问流程大致如下：

-- EOF --
